CHECKS AND MAINTENANCE

OIL FORK

The procedure for changing the oil in the

forks is provided only for information.

We recommend having the operation

performed by a BETAMOTOR authorized

workshop.

REMOVING LEGS

To replace, proceed as follows:

Position the vehicle on the central bike

stand.

Remove the front wheel.

Remove the mudguard, the brake caliper

and brake disc cover.

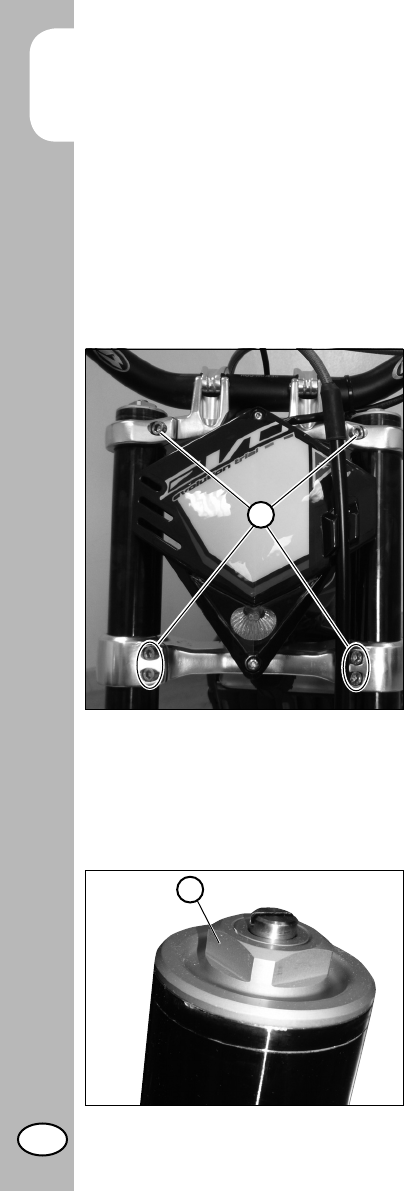

Loosen the screws 1 and pull off the stems.

OIL REPLACEMENT RIGHT LEG

Unscrew upper plug 2.

Unscrew ﬁ xing lock nut and take off the

plug.

Unscrew the ﬁ xing screw of the cartridge

positioned under the fork leg, and extract

the cartridge.
